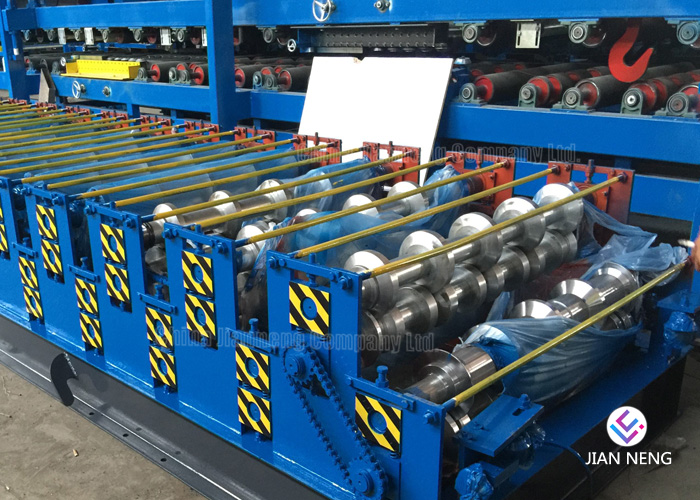

IBR Corrugated Profile Color Steel Roll Forming Machine With 5.5kw Frequency Converter
Description of IBR Corrugated Roofing Making Machine:
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 18groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 350 H-section steel
(8) Motor Power: 5.5kw
(9)Driven type: 1.0＂Chain
(10) Speed: 8~12m/min
Machine Components of Roll Forming Machine:
1. Decoiler ---------------------------------------------- 1 Unit
2. Feeding guide -------------------------------------- 1 Unit
3. Main roll forming machine ------------------------ 1 Unit
4. Hydraulic pressing device -------------------------1 Unit
5. Hydraulic cutting device --------------------------- 1 Unit
6. Hydraulic Station ----------------------------------- 1 Unit
7. PLC computer control ------------------------------1 Unit
8.Output tables ---------------------------------------- 2 Units
Specification / Technical Parameter
| Series | Details | Parameter |
|
Metal roofing machine / Roll forming machine |
Guiding&leveling device | Placed on the machine by seller |
| Shaft numbers:11pcs |
| Shaft diameter:80mm |
| Shaft material: 45# steel |
| Drive power:5.5kw |
| Rolling shaft material | 45# STEEL |
| Shaft diameter | 90mm |
| Roller material | GB-Cr15 with heat treatment |
| Rolling station | 15 stations |
| Machine frame | Cast iron vertical structure |
| Machine body | 400# H steel welded |
| Bearing | Chinese famous brand Harbin |
| Work power | 22kw |
|
Control system | Frequency brand | Delta from Taiwan |
| PLC brand | Delta from Taiwan |
|
Hydraulic system | Work type | Hydraulic |
| Punch mode | Four pillar hydraulic powered punching system |
| Driving method | By Cylinder |
| Motor power | 22kw |
| Mold material | GB-Cr12 |
| Mold quantity | 2 sets |
| Punching frame | 1 set |
| Press power | 80T |
| Cutting length tolerance | ±1.5mm |
Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
| Working conditions |
| 1.working size | 25m x 2m x 4m |
| 2.Power supply | 8.5kw |
| 3.Frequency | 50-60HZ |
| 4.Wires/cables | 4-6mm²(length according to workshop) |
| 5. Labor cost | 2 workers |
| 6. Tools | Spanners and screwdriver |
| 7.Lift device | 3-5t forklift or crane |
